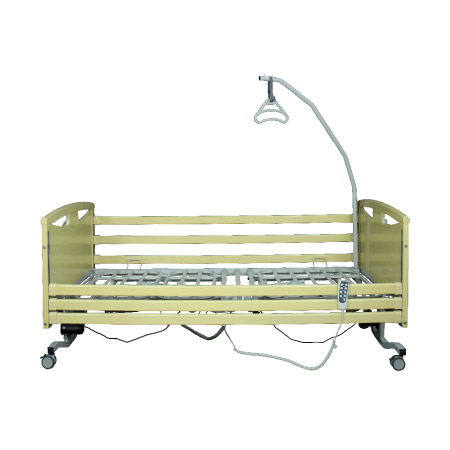

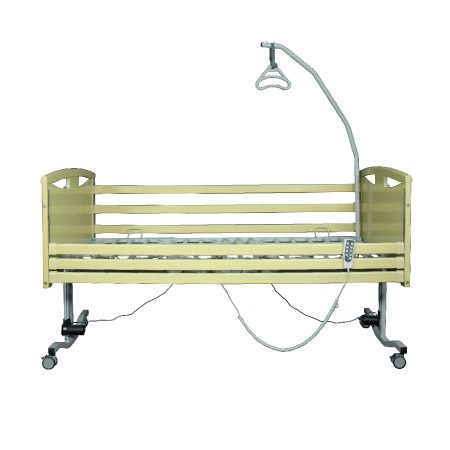

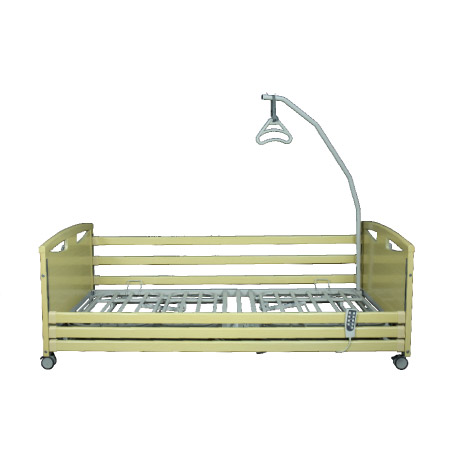

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 66 cm to 27 cm from the floor.
measurements in centimeters
| Total Bed width | 104 |
|---|---|
| Total Bed length | 210 |
| Total Bed length (Extended) |
222 |
| Mattress base width | 89 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
55 |
| Minimum mattress base height from the floor |
27 |
| Minimum mattress base height from the floor to Foot/head panel |
81 |
| Maximum mattress base height from the floor |
66 |
| Maximum mattress base height from the floor to Foot/head panel |
121 |
|---|---|
| Side rails height from mattress base | 40 |

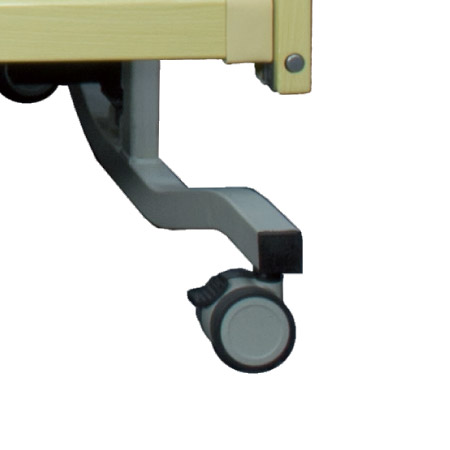

| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 135 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
15° |
| Calf section angle (after thigh section raised) |
No |
| Total Bed width | 104 |
|---|---|
| Total Bed length | 210 |
| Total Bed length (Extended) |
222 |
| Mattress base width | 89 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
55 |
| Minimum mattress base height from the floor |
27 |
| Minimum mattress base height from the floor to Foot/head panel |
81 |
| Maximum mattress base height from the floor |
66 |
| Maximum mattress base height from the floor to Foot/head panel |
121 |
| Side rails height from mattress base | 40 |
| Caster Diameter |
3” (PVC) WH001 |
| Maximum user weight | 135 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
15° |
| Calf section angle (after thigh section raised) |
No |
click on the image
