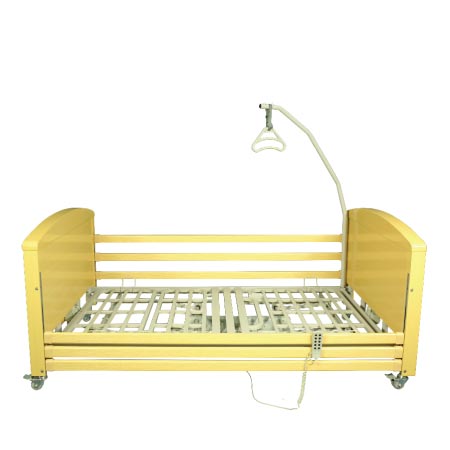

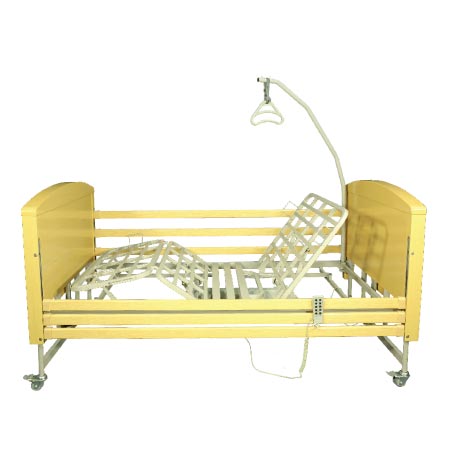

Electric wooden bed with adjustable head and foot sections.

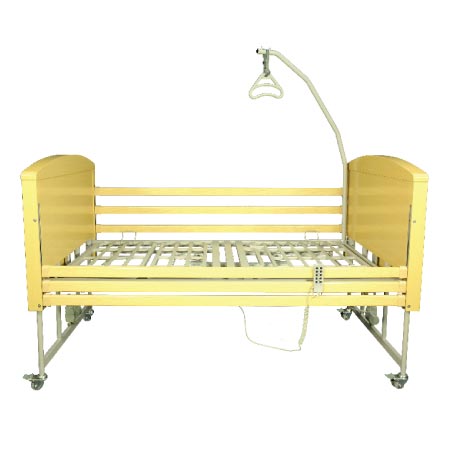

Height adjustable from 68 cm to 28 cm from the floor.
measurements in centimeters
| Total Bed width | 136 |
|---|---|
| Total Bed length | 220 |
| Total Bed length (Extended) |
no |
| Mattress base width | 120 |
| Total Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
70 |
| Minimum mattress base height from the floor |
28 |
| Minimum mattress base height from the floor to Foot/head panel |
99 |
| Maximum mattress base height from the floor |
68 |
| Maximum mattress base height from the floor to Foot/head panel |
138 |
|---|---|
| Side rails height from mattress base | 43 |

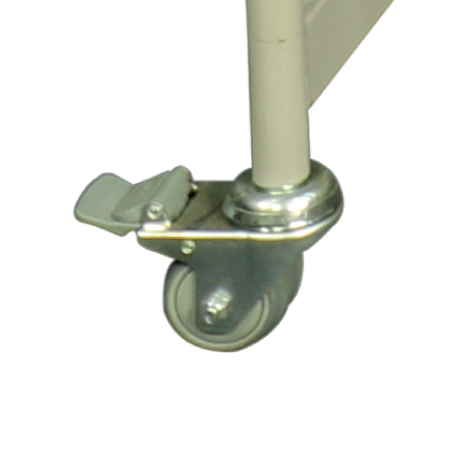

| Caster Diameter |
2.5” (Double wheels) WH009 |
| Maximum user weight | 180 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
25° |
| Calf section angle (after thigh section raised) |
7° |
| Packing dimensions |
(1/4): 123*119*21.5 (2/4): 140*101*12.5 (3/4): 140*101*12.5 (4/4): 204*37.7*6 |
| Total Bed width | 136 |
|---|---|
| Total Bed length | 220 |
| Total Bed length (Extended) |
no |
| Mattress base width | 120 |
| Total Mattress base length |
200 |
| Total Mattress base length (Extended) | 215 |
| Foot and Head Panel height from matress base |
70 |
| Minimum mattress base height from the floor |
28 |
| Minimum mattress base height from the floor to Foot/head panel |
99 |
| Maximum mattress base height from the floor |
68 |
| Maximum mattress base height from the floor to Foot/head panel |
138 |
| Side rails height from mattress base | 43 |
| Caster Diameter |
2.5” (Double wheels) WH009 |
| Maximum user weight | 180 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
25° |
| Calf section angle (after thigh section raised) |
7° |
| Packing dimensions |
(1/4): 123*119*21.5 (2/4): 140*101*12.5 (3/4): 140*101*12.5 (4/4): 204*37.7*6 |
