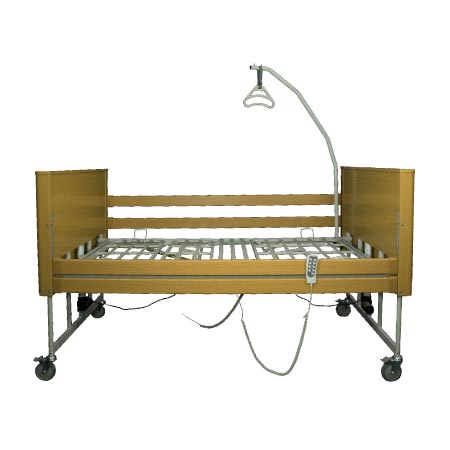

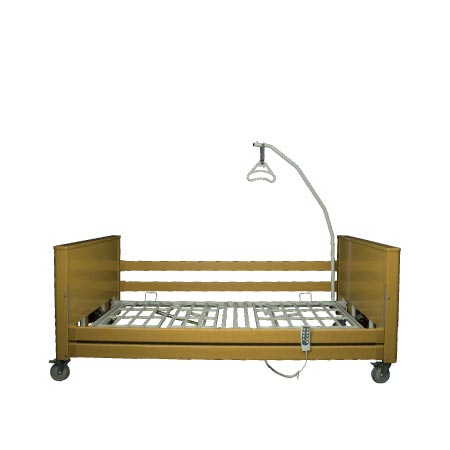

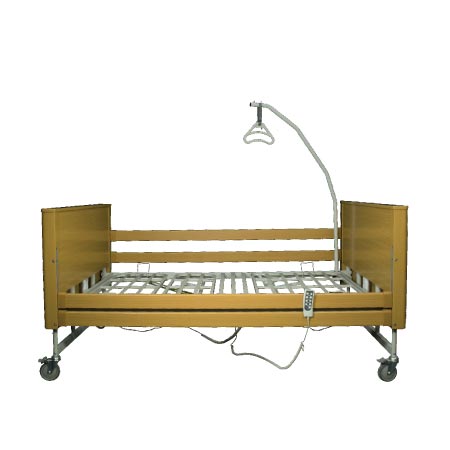

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 71 cm to 31 cm from the floor.
measurements in centimeters
| Total Bed width | 138 |
|---|---|
| Total Bed length | 221 |
| Total Bed length (Extended) |
No |
| Mattress base width | 120 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | No |
| Foot and Head Panel height from matress base |
61 |
| Minimum mattress base height from the floor |
31 |
| Minimum mattress base height from the floor to Foot/head panel |
91 |
| Maximum mattress base height from the floor |
71 |
| Maximum mattress base height from the floor to Foot/head panel |
131 |
|---|---|
| Side rails height from mattress base | 37 |

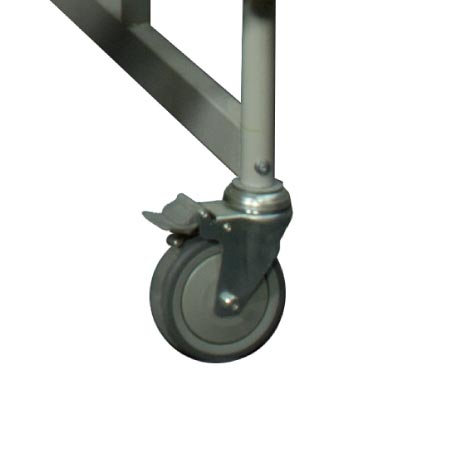

| Caster Diameter |
5” WH002 |
| Maximum user weight | 180 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
25° |
| Calf section angle (after thigh section raised) |
7° |
| Packing dimensions |
(1/4): 121*92*22 (2/4): 111.5*95.5*13 (3/4): 111.5*95.5*13 (4/4): 204*37.7*6 |
| Total Bed width | 138 |
|---|---|
| Total Bed length | 221 |
| Total Bed length (Extended) |
No |
| Mattress base width | 120 |
| Mattress base length |
200 |
| Total Mattress base length (Extended) | No |
| Foot and Head Panel height from matress base |
61 |
| Minimum mattress base height from the floor |
31 |
| Minimum mattress base height from the floor to Foot/head panel |
91 |
| Maximum mattress base height from the floor |
71 |
| Maximum mattress base height from the floor to Foot/head panel |
131 |
| Side rails height from mattress base | 37 |
| Caster Diameter |
5” WH002 |
| Maximum user weight | 180 kg. |
| Backrest angle |
70° |
| Thigh section angle | 35° |
| Calf section angle (when thigh section raised) |
25° |
| Calf section angle (after thigh section raised) |
7° |
| Packing dimensions |
(1/4): 121*92*22 (2/4): 111.5*95.5*13 (3/4): 111.5*95.5*13 (4/4): 204*37.7*6 |
