SUPER LOW 9532

Product Description

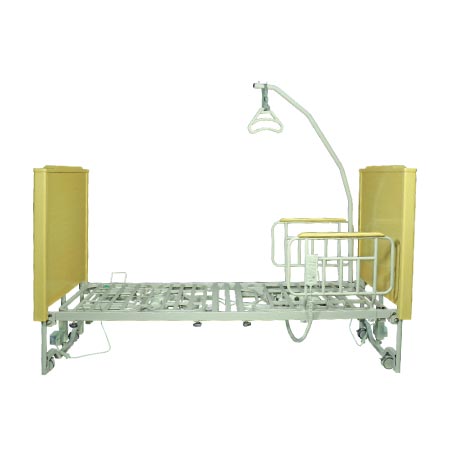

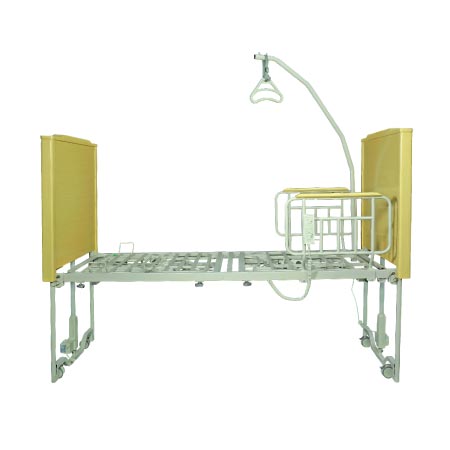

Electric wooden bed with adjustable head and foot sections.
Height adjustable from 70 cm to 10 cm from the floor.

Key features

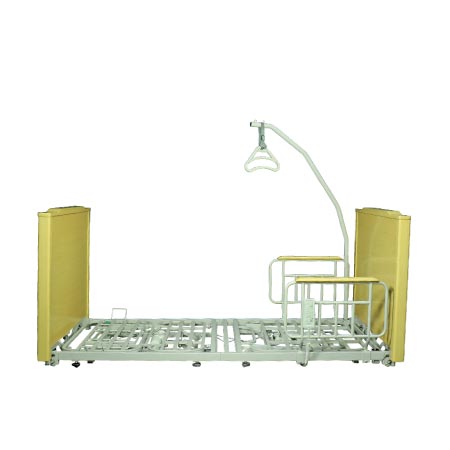

  • Minimum mattress base height : 10cm from the floor.
  • Safety stop mechanism at 30 cm from the floor when lowering the bed. Possibility to continue lowering the bed
    down to 10 cm from the floor by pressing a different button.

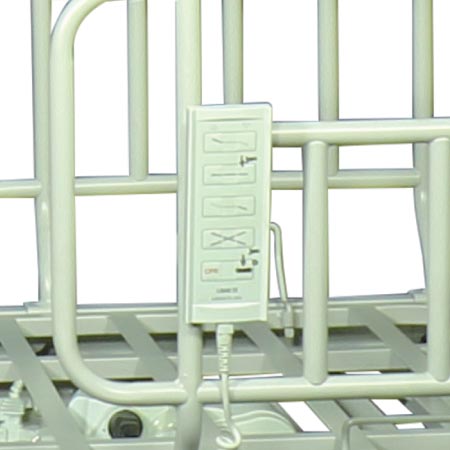

  • CPR button to bring back the mattress base to a parallel position with the floor to carry out a cardiac massage.
  • Length adjustable mattress base: +15 cm.
  • Auto regression backrest function.
  • Electric angle adjustment of the foot section.
  • Drop down 4 bar metal side rails (Option).
Categories: ,

Technical Details

measurements in centimeters

Total Bed width 103
Total Bed length 220
Total Bed length (Extended)
233
Mattress base width 88
Mattress base length
200
Total Mattress base length (Extended) 215
Foot and Head Panel height from matress base
83
Minimum mattress base height from the floor
10
Minimum mattress base height from the floor
to Foot/head panel
93
Maximum mattress base height from the floor
70
 Maximum mattress base height from the floor
to Foot/head panel
153
 Side rails height from mattress base Option

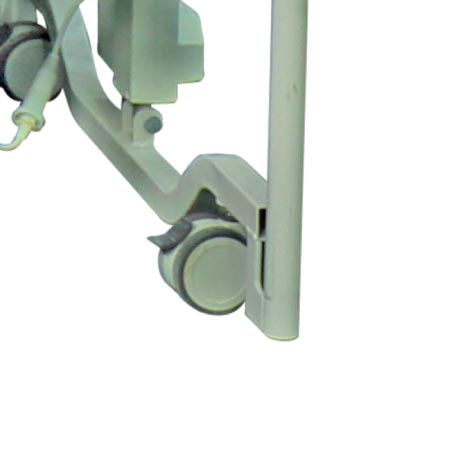

 Caster Diameter
3” (PVC)
WH001
 Maximum user weight 180 kg.
Backrest angle
70°
Thigh section angle 35°
Calf section angle (when thigh section raised)
25°
Calf section angle (after thigh section raised)
Packing dimensions
(1/3): 114*93*17.5
(2/3): 103*73.5*17
(2/3): 204*24*17

Total Bed width 103
Total Bed length 220
Total Bed length (Extended)
233
Mattress base width 88
Mattress base length
200
Total Mattress base length (Extended) 215
Foot and Head Panel height from matress base
83
Minimum mattress base height from the floor
10
Minimum mattress base height from the floor
to Foot/head panel
93
Maximum mattress base height from the floor
70
 Maximum mattress base height from the floor
to Foot/head panel
153
 Side rails height from mattress base Option
 Caster Diameter
3” (PVC)
WH001
 Maximum user weight 180 kg.
Backrest angle
70°
Thigh section angle 35°
Calf section angle (when thigh section raised)
25°
Calf section angle (after thigh section raised)
Packing dimensions
(1/3): 114*93*17.5
(2/3): 103*73.5*17
(2/3): 204*24*17
